How to Capture Photos in Trimble’s TerraSync Software Using a GeoExplorer 6000/7x Handheld
June 10, 2014

First, You’ll need to create a Data Dictionary (.ddf) file using the Data Dictionary Editor with a Feature that includes a “File Name” Attribute.

1: Create and define a New Feature

2. Choose the New Attribute button

3.Choose the File Name attribute type

ddf1

4:  Create and define the New File Name Attribute field.

ddf_FNA1

Second, Transfer your dictionary file (.ddf)  to your handheld and open TerraSync.

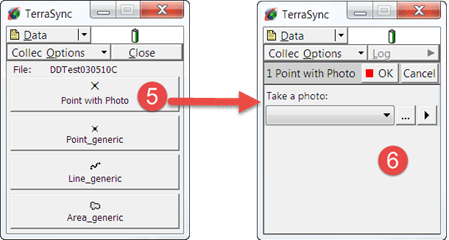

5. Select the Feature(s) that contains the File Name Attribute.

6. Click the Camera Icon (TS_cam_icon) to Take a Photo.

ddf_TS

NOTE: There will be a camera icon on the far right (TS_cam_icon) that will invoke the Windows Mobile Camera when you tap on it. This will hyperlink the photo as an attribute.
