DJI Matrice 300 RTK

Click to Contact a Local Office For a Quote

The Standard for the Commercial Drone Industry

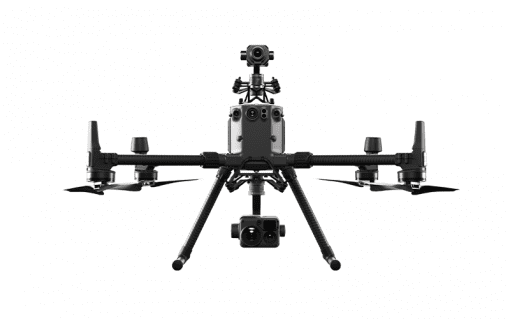

The Matrice 300 RTK from DJI takes inspiration from modern aviation systems. Offering up to 55 minutes of flight time, advanced AI capabilities, 6 Directional Sensing & Positioning and more, the M300 RTK sets the standard by combining intelligence with high-performance and unrivaled reliability.

Description

Built Tough. Works Smart. | Matrice 300 RTK
  • 15 km Max Transmission
  • 55-min Max Flight Time
  • 6 Directional Sensing & Positioning
  • Primary Flight Display
  • IP45 Rating
  • -20°C to 50°C Operating Temperature
  • Hot-swappable Battery
  • UAV Health Management System
Superior Performance

Improved Transmission System

The OcuSync Enterprise enables transmission up to 15 km away and supports triple-channel 1080p video. Real-time auto-switching between 2.4 GHz and 5.8 GHz enables more reliable flight near high-interference environments, while AES-256 encryption offers secure data transmission.

  • 15km Transmission Range
  • 1080p Triple-channel Video
  • 2.4 /5.8GHz Real-time Auto-switching

Enhanced Flight Performance

The airframe and propulsion system design gives you a more efficient and stable flight, even in harsh conditions.



  • 55min Max Flight Time
  • 7m/s Max Descend Speed
  • 7000m Service Ceiling
  • 15m/s Wind Resistance
  • 23m/s Max Speed

Multiple Payload Configurations

Configure your M300 RTK to fit your mission needs. Mount up to 3 payloads simultaneously, with a maximum payload capacity of 2.7 kg.

Advanced Intelligence | Smart Inspection

Live Mission Recording

Record mission actions such as aircraft movement, gimbal orientation, photo shooting, and zoom level to create sample mission files for future automated inspections.

AI Spot-Check

Automate routine inspections and capture consistent results every time. Onboard AI recognizes the subject of interest and identifies it in subsequent automated missions to ensure consistent framing.

Waypoints 2.0

Create up to 65,535 waypoints and set multiple actions for one or more payloads, including 3rd party ones, at each waypoint. Flightpath planning is also optimized to maximize flexibility and efficiency for your missions.

Smart Pin & Track

PinPoint

Mark an object in camera or map view with a quick tap, and advanced sensor fusion algorithms will immediately calculate its coordinates, which are projected to all camera views as an AR icon. The location of the subject is automatically shared with another remote controller, or to online platforms such as DJI FlightHub.

Smart Track

Identify and follow moving subjects like people, vehicles, and boats with the Smart Track function, where auto-zoom is applied for steady tracking and viewing. The subject’s dynamic location is continuously acquired and shared to another remote controller or to DJI FlightHub.

Aviation-Grade Situational Awareness

The M300 RTK adopts Primary Flight Display (PFD) that integrates flight, navigation, and obstacle information to empower the pilot with exceptional situational awareness.

Advanced Dual Control

Either operator can obtain control of the aircraft or payload with a single tap. This creates possibilities for mission strategies as well as flexibility during operations.

Safety and Reliability

A Powerful Vision System You Can Rely On

To enhance in-flight safety and aircraft stability, dual-vision and ToF sensors appear on all six sides of the aircraft, offering a maximum detection range of up to 40 m, with options to customize the aircraft’s sensing behavior via the DJI Pilot App. Even in complex operating environments, this 6 Directional Sensing and Positioning system helps keep the aircraft and the mission safe.

Professional Maintenance for Your Drone Fleet

The integrated Health Management System displays the current status of all systems, notification logs, and a preliminary troubleshooting guide. Also in the system are the aircraft’s flight logs, duration, and mileage throughout its entire lifecycle, and tips on aircraft care and maintenance.

Redundancy Systems for Safer Flights

The M300 RTK’s built-in advanced redundancy systems help keep your critical missions going even in unexpected scenarios.



More Adaptable Than Ever Before
  • IP45
  • Self-Heating Battery
  • -20°C to 50°C
  • Anti-Collision Beacon
  • AirSense ADS-B Receiver
