Watts Innovations PRISM

Versatility Takes Flight

The most versatile drone on the planet. Watts has designed the PRISM to be the most versatile aircraft possible. They understand the challenges that professional drone operators face on a daily basis, so they created this aircraft with the pilots in mind.

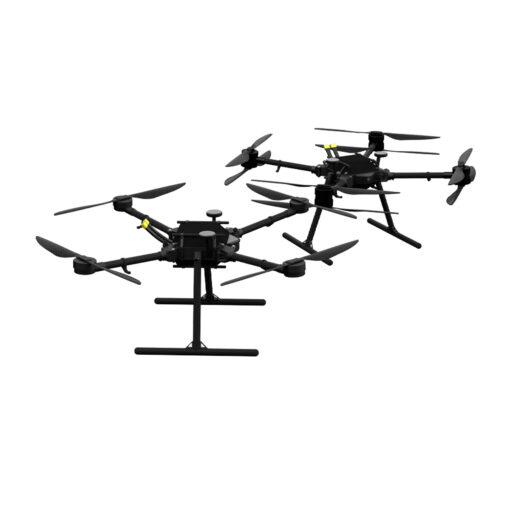

Quad / X8 – PRISM can easily be configured as a Quadcopter or X8 Coaxial

PRISM can fly as a quadcopter or X8 Coaxial, with large motors or small. Each arm is user serviceable and can literally be removed with two bolts. With Watts' patent-pending PropulsionID technology, the drone is smart enough to detect and automatically configure the autopilot for flight no matter what kind of propulsion system is installed.

Applications

  • Cinema
  • LiDAR
  • Inspection and Mapping
  • Spraying
  • Cargo

PRISM Specifications Based on Propulsion System
Quadcopter

PRISM, as configured as a Quadcopter, is maneuverable, light weight, quiet, efficient, and speedy.

  • Max Takeoff Weight: 37lbs
  • Dry Weight (without batteries): 15.6lbs
  • Max Payloads: 5lbs
  • Battery Requirements: 2x 12s 8,000mAh packs
  • Flight Time: 10-45 minutes (dependent upon payload / battery size)
  • Max Tested Speed: 60mph
  • Propeller Size: 28"

Coaxial X8

PRISM, as configured as a X8 Coaxial, is powerful, reliable, efficient, and offers mechanical redundancy.

  • Max Takeoff Weight: 55lbs
  • Dry Weight (without batteries): 20.25lbs
  • Max Payloads: 25lbs
  • Battery Requirements: 2x 12s 8,000 - 16,000mAh packs
  • Flight Time: 10-45 minutes (dependent upon payload / battery size)
  • Max Tested Speed: 60mph
  • Propeller Size: 28"

Other Specifications

  • Diagonal Wheelbase: 1,100mm
  • Autopilot: Pixhawk 2.1 / Cube, Orange (Made in Taiwan)
  • FPV Video: High Defintion FPV Video
  • Ingress Protection: Water & Dust Protected (IP Testing Currently in Progress)
  • Ground Station Controller: ECHOSKY Series
  • Internal Peripheral Power: 5v, 12v, 24v on top and bottom of frame
  • External Peripheral Power: 5v, 12v, 24v, 50v
  • External Communications: SBus / Serial
  • External Video Source: supported through external HDMI connector

In The Box

  • PRISM Aircraft
  • SKB Travel Case
  • ECHOSKY Mobile
  • Battery Tray
