REVOLUTION ROV

Click to Contact a Local Office For a Quote

Join the REVOLUTION

Mission-ready remotely operated vehicle with greater payload capabilities, deeper depths, and advanced stabilization.

The Deep Trekker REVOLUTION is a completely re-imagined ROV. The patented pending revolving head allows operators to rotate the camera, manipulators, and sonar all while station holding in moving water.

Description

Expeditionary Ready ROV

The REVOLUTION is designed to be deployed within minutes. The remotely operated vehicle and its components (controller, reel, USBL, sonar, etc) are completely battery operated, allowing the system to be deployed from anywhere.



  • Depth Rating up to 305 Meters (1,000 Feet)
  • 8 Hour Battery – Including Quick Swap
  • Wheeled Pelican Case
  • Low Maintenance
  • Comprehensive Sensor Integrations
  • 4K Camera Quality
  • 260 Degree Camera Rotation
  • Sonar and Positioning Ready
  • Extreme Mobility and Stabilization Control
  • Comprehensive Sensor Integrations

The REVOLUTION is the most intuitive and stable ROV for underwater surveys and inspections, built tough to survive harsh underwater conditions to accomplish complex missions. The revolving head provides unmatched flexibility for key attachments, allowing you to rotate your imaging sonar, ultra high definition camera and grabber to get the optimal angle depending on the task at hand.




REVOLUTION ROV | Package

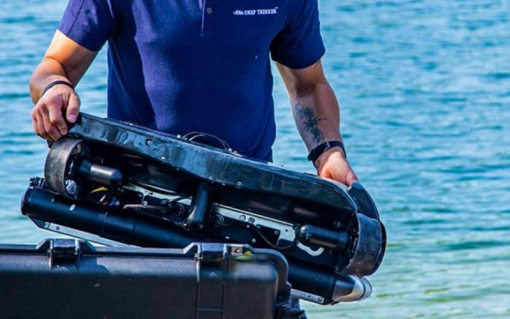

One to two person deployable, the REVOLUTION ROV is out of the box and in the water within minutes.

Revolutionary Revolving Camera Head

The defining feature is the 260-degree revolving head at the front of the vehicle. In the center of this head is the ultra high definition camera that you see the view from on your controller, as well as powerful LED floodlights and a laser scaler.

Adjust the angle of your camera, lights, laser scaler, imaging sonar and grabber to ensure optimal position for your application, such as sweeping an area with the imaging sonar in a search mission or looking above at the hull of a ship or to locate targets on the seafloor.

Stable Six-thruster Control

The ROV is propelled by six powerful thrusters, two of which are vertically mounted for precise vertical movements and depth holding, four of the thrusters are mounted horizontally and in a vectored configuration to allow for lateral movements. This configuration of thrusters is great for holding in heavier currents and for stable control when making fine adjustments while performing an inspection or survey.

Operation Longevity

The REVOLUTION is powered by two Lithium Ion battery tubes on the bottom of the ROV. These batteries last for up to 8 hours and only take 3 hours to recharge. Included in the package is a spare set of batteries, these battery tubes or skis can be interchanged very quickly to keep your operations up and running. At the front of the skis are additional LED floodlights for even better illumination for your video.

BRIDGE Seamless Sensor Integrations

ROVs are controlled by BRIDGE software, which enables you to see and record data from many different sensors all from a handheld controller. When you add positional sensors such as the USBL, you can see your position on screen via a Google map and record your position as it changes over time along with the video and your other sensor data. Imaging sonars are also integrated directly on the handheld, allowing you to see and record sonar data side by side with your position and video footage.

Durable Construction

The carbon fiber shell, anodized aluminum and stainless steel body and sapphire lens cover make the ROV a very rugged and durable machine.

Magnetic Coupling

The thrusters utilize an innovative design called magnetic coupling, the propeller assembly and drive motor are connected together using magnets, meaning that the thrusters are very durable, they do not wear down over time and they do not require ongoing maintenance as other thrusters often do require oiling, greasing or regular replacement.

Direct Sonar Integration

Above the camera head is an optional mount for a multi-beam imaging sonar. Use the sonar to get a visual through murky water or over longer distances, monitor your sonar footage live and record it alongside your video all on your handheld controller, no extra laptops or monitors required.

Simple Field-change Tools

Below the camera is a two function grabber, with interchangeable claws for sampling, measuring, recoveries or tool manipulation.



In the Box:

  1. REVOLUTION ROV with 6 Thrusters
  2. 260 Degree Rotating HD Camera and High Powered LED Light
  3. 300 M (1,000 FT) Tether on Reel (6 MM Diameter)
  4. Integrated Super Bright Screen Controller Operating BRIDGE Software
  5. 2 Function Grabber Arm
  6. Intelligent Sensor Package Complete with Water Temperature, Battery Levels, Auto Depth and Auto Heading
  7. 4 Camera-facing LED Lights
  8. Wheeled Pelican Case
  9. Laser Scaler (10 CM / 3.9″)
  10. Spare Batteries with LED Floodlights
  11. Microphone
  12. Chargers and Ballast Tool Kit
