Blueprint Subsea SeaTrac USBL Positioning System

Click to Contact a Local Office For a Quote

Underwater ROV Add-Ons

The SeaTrac Ultra Short Baseline Locating system allows you to gain awareness of the relative position of your ROV, as well as set waypoints along your dive. Understanding where your ROV is located, and where you have already searched or investigated, can be challenging. Without the ability to utilize GPS underwater, ROVs rely on the use of sound technology for navigation and locating.

Description

Bridge Integrated Blueprint Subsea SeaTrac Ultra Short Base Line (USBL) Positioning System for Tracking ROVs



  • Track ROV Position Underwater
  • On-screen Integration
  • 1 KM Range

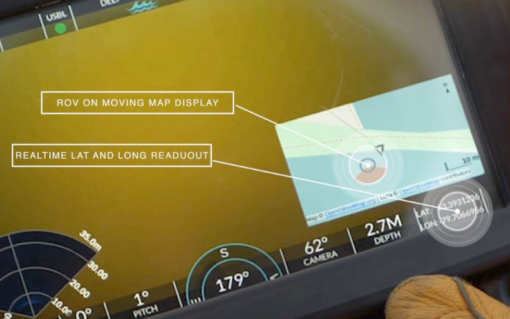

Using a dunking transducer at the surface and a transponder mounted to the top of the ROV, the two communicate using acoustics. The relative position of the ROV to the dunking transducer is calculated and then through Bridge software is displayed on a Google Map on your controller. This allows you to visualize your position during your dive, and plot points of interest.

In open water applications where you want to know exactly where you are and where you are going, you use this positioning system to track your ROV. Our Ocean Science customers use this to track where they saw certain features and log data over the span of their dive. Inspection companies inspecting critical infrastructure use the USBL to log where they find defects and anomalies during an inspection.






In The Box:

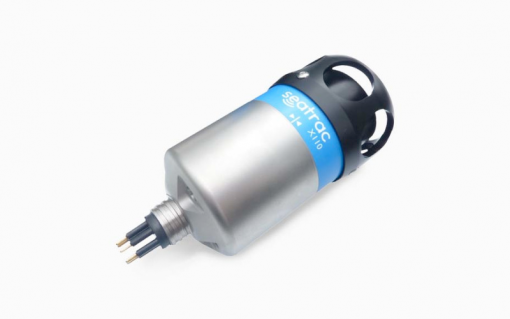

  1. X150 USBL Beacon
  2. X010 Modem Beacon
  3. 20 M X 150 Deck Cable
  4. USB/Power Splitter Cable
  5. 1 M X010 Diagnostic Cable
  6. 1 M X010 Cable Whip
  7. X150 Pole Mounting Bracket
  8. USB GPS Receiver
  9. Universal AC-to-DC 24V Power Supply
  10. SeaTrac PinPoint Windows Software and Electronic Manual
  11. Reset Magnet
  12. Peli™ Transit Case
