Stork Remote System (SRS)

Click to Contact a Local Office For a Quote

Performing a discharge measurement with an ADCP requires that you find some way to move the ADCP across the channel from bank-to-bank. This is typically done using a tethered line from a bridge, using a rope from the bank, or from a manned boat. Now there is an easier way.

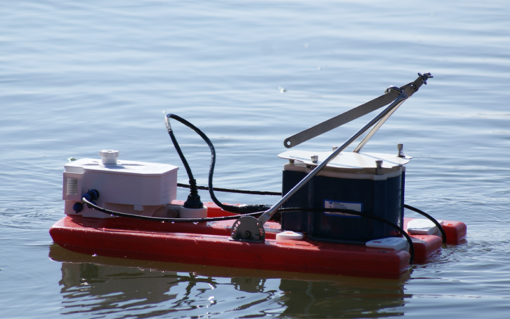

The Stork Remote System (SRS) allows Teledyne RD Instrument Stream Pro user’s to perform discharge measurements from any location on the river, stream, or canal. Easy to mount on any Stream Pro float, in just a few minutes you can turn your tethered Stream Pro float into an Unmanned Surface Vessel (USV).

Description

Stork RS Remote Control for Teledyne RDI Stream Pro ADCP

Stork Remote System (SRS)

Reduces Survey Time

SRS reduces survey time by eliminating the need to locate a perfect location, use of a tethered line, or looking for a bridge for deployment.

Improves Safety

With the SRS there is no need to work from dangerous traffic bridges or go into the water to rig lines.

Easy to Mount and Remove

The SRS includes a set of dedicated thrusters, mounts, and a battery/communication compartment – everything fits ideally on a standard StreamPro ADCP float. No custom work is required, no bolts, and no permanent modification. Transforming your tethered boat into USV will take only 5 minutes and you can easily detach the SRS if needed.

Technical Specifications:

  • Top Speed: 5 fps
  • Typical Cruising Speed: 3.3 fps
  • Weight: 4.4 lbs (with RC Control)
  • Power: Li-ion Battery Pack (20.5 volts)
  • Battery Performance: 1.5 Hours/Battery at Typical Cruising Speed
  • Thrusters: Two T200 Blue Robotics Thrusters
  • Material: Z-Ultrat/PETG
  • RC Control: Frsky RC
  • RC Frequency: 2.4 Ghz
  • RC/Boat Range: Over 100 meters
  • Warranty: 12-months

SRS Package Includes: set of two T200 Blue Robotics thrusters, thruster mounting hardware, battery/communication compartment and mounting, cabling, two lithium-ion batteries, battery charger, R/C controller, and shockproof case.










Request a Quote

Stork Remote System (SRS) Brochure
