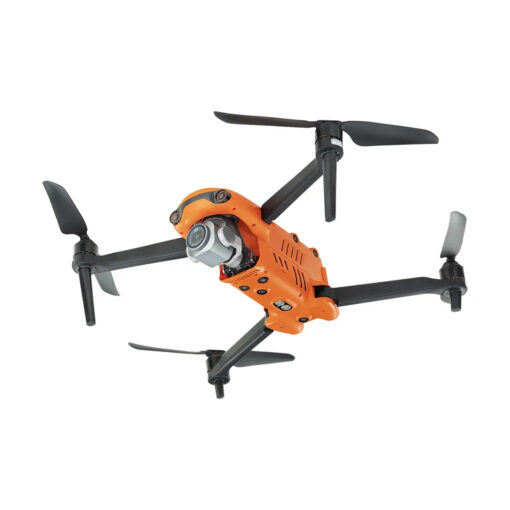

Autel Robotics EVO II Pro 6K V3

Click to Contact a Local Office For a Quote

Leader in Picture Quality and Flight Intelligence

Autel Robotics EVO II Pro V3 comes with Sony’s new 20 megapixel 1-inch CMOS image sensor and supports up to 6K video resolution with greater dynamic range, stronger noise suppression, and higher frame rates. The lens’ adjustable aperture range of f2.8 to f11 and a maximum ISO of 44000, enables the photographer to enhance their control and creative freedom.

Description

Leader in Picture Quality and Flight Intelligence

  • 1-inch sensor
  • 6K Ultra HD
  • 360° Obstacle Avoidance
  • 15 Kilometers
  • 20MP Photo Resolution at 5472 x 3648px stills
  • 6K / 30fps HDR Video; bit rate up to 120Mbps
  • f/2.8 to f/11 aperture range

Autel EVO II Pro 6K Camera

Moonlight Algorithm 2.0
• Succeed in night photography with the EVO II Pro V3’s 6K 1-inch CMOS and Autel Robotics’ Moonlight Algorithm 2.0

With EVO II Pro, photos have never looked so good. Re-experience every moment with exceptional low-light photography and time-lapse capabilities made possible with our 1-inch sensor. With an adjustable aperture from f/2.8-f/11, max ISO of 12,800, built-in HDR bracketing, and 20MP stills, pilots now have unmatched performance and flexibility.

4K HDR Video

For the ultimate in picture quality, the EVO II Pro V3 pairs the brilliance of 4K clarity with the brightness, color, and detail of HDR. Previously hidden areas of dark shadow and sunlight are now full of clarity and details.

6K Hyper-lapse Photography and More Shooting Modes

The EVO II Pro V3 camera drone supports a variety of shooting modes including Single-shot, Burst Shooting, Auto Exposure Bracketing (AEB), Time-lapse (JPG / RAW), High-dynamic-range (HDR), HyperLight, and Long Exposure.

Post Production Flexibility with 12-bit DNG

The EVO II Pro V3 can take 12-bit DNG photos and is capable of recording up to 68.6 billion colors with 64 times the color rendering power of 10-bit, allowing greater flexibility in post production.

Hyper-lapse Photography in 6K

You can enjoy your favorite moments at any time, free from post-processing as 6K mobile time-lapse video. It can be exported right after recording and JPG / Raw formats are supported.

Autel SkyLink 2.0 Video Transmission

SkyLink 2.0 is built into the EVO II V3 chipset, expanding the possibilities of your most critical workflows.

• 9+ Miles | Do more because you can fly further away
• QHD | Incredible video resolution within a mile, meeting most common use cases
• 2.4GHz / 5.8GHz / 900MHz | Supports tri-band communication with automatic frequency hopping for maximum anti-interference capabilities (900MHz is only applicable for FCC countries).

Interchangeable Cameras

Autel EVO II Series is one aircraft with three camera options. All cameras for EVO II can be purchased separately and are interchangeable!

EVO II | AI Enhanced Dynamic Track

EVO II Pro V3 can model location and speed of targets simultaneously, predict their trajectory accurately, avoid obstacles during flight, and track them continuously while identifying up to 64 objects at the same time. The function can track the subject in three modes: behind, side-by-side, or fixed position.

360° Obstacle Avoidance

EVO II Pro V3’s front, rear, left, right, top, and bottom binocular vision sensing systems use image data to calculate the distance between aircraft and potential obstacles. Begin detecting potential hazards at up to 30m away and let EVO II accurately control the speed of the drone to avoid a collision.

• 12 Optical Sensors + 2 Sonar Sensors

Multiple Intelligent Flight Modes

Autel EVO II supports multiple smart Flight Modes including Dynamic Track, Parallel Track, Tripod Track, Viewpoint, Orbit, Gesture Control, VR Flight, Waypoint, and more.

Failsafe and Automatically Return Home

EVO II Pro V3 will return home automatically when the battery reaches a low level or communication is lost. Additionally, EVO II’s bottom binocular vision camera is used to create a density depth map.

40 Minutes and 5.5 Miles HD Transmission

Autel EVO II Pro V3 comes standard with a 7100mAh rechargeable battery, providing up to 40 minutes of flight time in forward motion up to 9km (5.5 miles) and 35 minutes at a hover and a top speed of 45mph. There is no geofencing or cellular service restrictions on any of the EVO IIs.

Autel Smart Controller SE

The Smart Controller SE comes with a 6.4-inch OLED touch screen and the latest gen. 8-core processor for HD image transmission. SkyLink 2.0 Transmission technology guarantees long-distance operations  from up to 15km away and enhances anti-interference abilities with tri-band frequency hopping. The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating that ensures all weather performance.

• 6.4-inch OLED Screen
• 15km Transmission Range
• Removable Battery
• 3rd Party Apps
• -10° to 40°C Operating Temperature

Live Deck 2: Stream Anywhere

EVO II Pro V3 supports multi-port HDMI real-time output to meet the requirements of project monitoring and live streaming with Live Deck 2.

• 1080P / 60fps Video Stream
• Three Auto-switch Bands
• 12km Transmission Range
• 5-Hour Battery Life
• IP43 Resistance
